SWF troubleshooting

SWF embroidery error codes 100-954 explained - 102 overload, 103 trim return, 200-203 frame limits, 650 USB, 900 CAN errors - plus fixes and oiling.

Commercial
Made in South Korea (SunStar)
Files: DST (Tajima T-code), SST (SWF native); panels also report ZSK and Barudan data errors

Control panel: Older machines: LED alphanumeric or LCD panel with an SWF M-Setting key; E-series and later: OP box with screen, USB port and Error Information log

Short answer

On SWF machines most stops come back to three things: the main shaft not parked at 100 degrees, thread wrapped in the hook (which throws 102 overload), and trimmer knives that did not return (103). Park the shaft on the red 100 mark, clear the hook and knives, and power-cycle. Frame limit codes 200-203 just mean the design ran past the set limit, and 650 means the USB stick is not FAT16-friendly.

SWF model families

Find your machine to see what it's known for, then jump to its error codes and fixes.

E-T single-head (E-T1501C, E-T1201C, compact and full size)

Type: Commercial single-head, 12 or 15 needles
Years: E-series era to present
Field: see the E-T manual for your frame set
Max speed: 1,200 rpm default maximum (compact, bridge and regular single-head E-series)
Panel: OP box with screen and USB
Formats: DST, SST

The most common SWF in small shops. Error codes follow the standard SWF table (100s main shaft, 200s frame, 600s media, 700s memory, 900s communication). Typical failures are birdnests causing 102, trim knives not returning (103) and USB sticks not recognised (650).

Error codes E-T Compact single-head user manual (PDF, via Stitch It)

single-head15-needle12-needlecaptubular

E-T full-size single-head

Type: Commercial single-head, 15 needles
Years: E-series era to present
Field: see the full-size manual
Max speed: 1,200 rpm default maximum
Panel: OP box with screen
Formats: DST, SST

Same control logic as the compact with a larger field. The manual's troubleshooting chapter is symptom-based (bad color change, thread breaks, skipped stitches, trimming failure) and is the best guide for mechanical faults.

Error codes E-T full-size user manual (PDF, via Stitch It)

single-head15-needlecap

E-U bridge single-head

Type: Bridge-type single-head
Years: E-series era
Field: see the bridge manual
Max speed: 1,200 rpm default maximum
Panel: OP box
Formats: DST, SST

Has an upper thread holder solenoid above the needle bar; a dead holder solenoid or blown F3 fuse causes thread pull-outs after trims.

Error codes Single-head E-series operating manual, covers bridge (PDF, via Stitch It)

single-headbridgelarge-field

E Dual Function

Type: Multi-head with two head types (e.g. embroidery plus cording/sequin)
Years: E-series era
Field: see the dual function manual
Max speed: per machine parameter
Panel: OP box with 10-entry error log
Formats: DST, SST

Uses the same error numbering as the single-heads, including valve (107) and air pressure (108) errors for the pneumatic devices.

Error codes E Dual Function operation manual (PDF, via Stitch It)

multi-headcordingsequin

E-series multi-head (2, 4, 6, 8 heads; compact 6-head)

Type: Commercial multi-head
Years: E-series era
Field: see the E-series multi-head manual
Max speed: per machine parameter
Panel: OP box
Formats: DST, SST

All heads share one trim linkage and one trim sensor, so a birdnest on one head gives error 103 for the whole machine. The trim plunger collecting grease is a classic multi-head fault.

Error codes E-series 2/4/6/8/6C multi-head user manual (PDF, via Stitch It)

multi-head15-needlecap

MAS-12 and MAS-15

Type: Compact single-head, 12 (MAS-12) or 15 (MAS-15) needles
Years: recent
Field: MAS-12: 360 x 230 mm tubular; wide cap frame 360 x 75 mm; semi-wide cap 180 x 83 mm
Max speed: MAS-12: 1,000 rpm
Panel: OP box with USB memory stick input
Formats: DST, SST

Brushless main motor and stepper frame motors. Uses the same code table as larger SWFs; in this manual 109 is listed as an AC line (power) error.

Error codes MAS-12 user manual, error display (ManualsLib copy)

single-head12-needle15-needlecapcompact

SB series and K / KS / KX multi-heads

Type: Commercial multi-head (also covers DM, K-series and multi-head E on the same manual)
Years: various
Field: see the SB series manual
Max speed: per machine parameter
Panel: OP box with USB and network
Formats: DST, SST

Largest published SWF code table (main shaft, frame, color change, encoder, media, network, USB, memory, sequin and CAN communication codes).

Error codes SB series user manual, error messages (ManualsLib copy)

multi-headnetworksequin

MA-6 and other compact/older lines (MAN-12, A, B, C, HC, UI)

Type: Compact single-heads and older series
Years: various
Field: see model manual
Max speed: MA-6: 1,000 rpm default maximum
Panel: varies by generation
Formats: DST, SST

The MA-6 shares the E-series parameter set with lower speed limits (jump speed default 650 rpm). Older series have their own manuals in the Stitch It library.

Error codes Stitch It SWF support library

single-head6-needleolder

SWF error codes 53

Type the code or words from the screen. Codes vary by model and software version — when in doubt, your machine's own manual wins.

Code	Message	What it means	What to do	Models	Source
100	Main shaft motor stop position error	The machine stopped with the main shaft somewhere other than 100 degrees.	Turn the shaft with the lever or wheel until the red 100 mark lines up, then power-cycle.	All E-series, MAS, SB	SB series manual; MAS-12 manual; E-T compact manual
101	Main shaft motor driver error	The main motor driver reported a fault. Dealer experience: usually thread jammed in the hook.	Clear any thread from the hook, then switch the main power off and on. Repeated 101 needs a technician to check the driver.	All	SB series manual; Stitch It "Errors 102 & 103"
102	Main shaft motor overload	The main shaft could not turn freely: thread wrapped in the hook, a bad needle bar drive, or thread tangled during a trim.	Cut away the nest under the needle plate, pull and clean the bobbin case, reset bobbin tension, check the hook on every head, then power-cycle. Reset top pre-tension and main tension before sewing.	All	SB series manual; MAS-12 manual; Stitch It "Errors 102 & 103"
103	No trimming system recovery / Trimming return	The trim sensor did not see the knives return after a trim. Usually thread under the fixed knife or grease on the trim plunger.	Pull the needle plates, swing the moving knife out and clear thread under the fixed knife. Check the under-thread presser is not bent up. Wipe grease off the trim plunger and cam groove, oil the plunger, then run the trim solenoid test until you hear two clicks.	All, especially multi-heads	Stitch It "Errors 102 & 103"; SB series manual
104	Start switch error	The start button was held or stuck when the machine powered on.	Release the button and check it is not shorted at its connector.	All	SB series manual; MAS-12 manual
105	Stop switch error	The stop button was held or stuck at power-on.	Release it and check its connector.	All	SB series manual; MAS-12 manual
107	Valve error	A pneumatic valve is open.	Check the valve and air device (sequin/boring).	Machines with air devices	SB series manual
108	Air pressure error	Supply air pressure is below the required level for the sequin device.	Check the compressor, regulator and hoses.	Sequin-equipped	SB series manual
109	Pulley ratio error (AC line error on MAS-12)	The set pulley ratio does not match the machine; on MAS-12 the same number is a power supply or power measuring circuit fault.	Have a technician check the pulley ratio setting, or on MAS-12 the incoming power and circuit.	SB, E-T compact; MAS-12	SB series manual; MAS-12 manual
110	AC line error	A fault on the joint board.	Technician to replace the joint board.	SB, E-T compact	SB series manual
200	(+X) frame limit	The frame hit the +X limit.	Jog the frame in the -X direction and re-centre the design.	All	SB series manual; MAS-12 manual
201	(-X) frame limit	The frame hit the -X limit.	Jog the frame in the +X direction.	All	SB series manual; MAS-12 manual
202	(+Y) frame limit	The frame hit the +Y limit.	Jog the frame in the -Y direction.	All	SB series manual; MAS-12 manual
203	(-Y) frame limit	The frame hit the -Y limit.	Jog the frame in the +Y direction.	All	SB series manual; MAS-12 manual
204	X-axis driver error	The X drive reported a fault.	Power-cycle. If it returns, a technician should test the X driver board and motor.	All	SB series manual; MAS-12 manual
205	Y-axis driver error	The Y drive reported a fault.	Power-cycle; repeat errors need the Y driver and motor checked.	All	SB series manual; MAS-12 manual
206	Wiper return error	The wiper did not return.	Free or repair the wiper mechanism.	All	SB series manual; MAS-12 manual
207	Trimmer return error	The trimmer motor or solenoid did not return.	Clear thread from the knives and repair the trimmer mechanism.	All	SB series manual; MAS-12 manual
300	Needle bar stop position error	After a color change the needle bar did not land in position.	Turn the needle bar by hand, feel for a tight spot, and set it on a needle position.	All	SB series manual; MAS-12 manual
400	Main shaft encoder A error	Signal problem on encoder channel A.	Check the encoder cable and power-cycle.	All	SB series manual; MAS-12 manual
401	Main shaft encoder Z error	Signal problem on encoder channel Z (the once-per-turn signal).	Check the encoder cable and power-cycle.	All	SB series manual; MAS-12 manual
501	Repeat work setting error	The X count times Y count in repeat work is over 99.	Lower the repeat counts so their product is under 99.	All	SB series manual; MAS-12 manual
600	No diskette	No floppy disk in the drive.	Insert a disk.	Floppy-drive machines	SB series manual
601	No sectors on the diskette	The disk is unformatted or in another format.	Format or swap the disk.	Floppy-drive machines	SB series manual
602	No design data in the diskette	No embroidery design on the disk.	Use a disk with designs saved in a machine format.	Floppy-drive machines	SB series manual
603	Remove the write protect tab	The disk is write-protected during a copy.	Slide the write-protect tab off.	Floppy-drive machines	SB series manual
604	Diskette damaged	The disk is damaged.	Format or replace it.	Floppy-drive machines	SB series manual
605	Insufficient memory capacity (disk)	Not enough free space on the disk for the copy.	Use a new disk.	Floppy-drive machines	SB series manual
606	Diskette removed from FDD	The disk was pulled out mid-operation.	Reinsert it and restart the job.	Floppy-drive machines	SB series manual
607	Bad sector during reading	Bad sector on read.	Format or replace the disk.	Floppy-drive machines	SB series manual
608	Bad sector during writing	Bad sector on write.	Format or replace the disk.	Floppy-drive machines	SB series manual
609	Diskette error, unknown cause	Unexplained disk error.	Format or replace the disk.	Floppy-drive machines	SB series manual
610	Diskette error	General disk error.	Format or replace the disk.	Floppy-drive machines	SB series manual
611	ZSK design error	Problem reading a ZSK-format design.	Re-save the design in DST or SWF format and reload.	All	SB series manual; Dual Function manual
612	BARUDAN design error	Problem reading a Barudan-format design.	Re-save in DST or SWF format and reload.	All	SB series manual; Dual Function manual
613	Bad sector error	Media sector error.	Replace or reformat the media.	All	SB series manual
614	Operating program install error	The program file to install is missing or misnamed.	Check the program file name matches what the machine expects (the Dual Function manual names it swf_tb.bin).	All	SB series manual; Dual Function manual
630	Error found in the read data	Data read through the tape reader is corrupt.	Re-read the tape.	Tape-reader machines	SB series manual
640	Network device error	Network devices are not connected.	Check the network cable and device status.	Networked machines	SB series manual
650	USB error	The USB driver is not ready or the stick's file system is not supported.	Reformat the stick as FAT16 (FAT), plug it straight into the OP box (no hub or extension), and try a major-brand stick.	All USB machines	SB series manual; E-T compact manual
700	No embroidery data in memory	The memory has no design.	Load a design from USB or disk.	All	SB series manual; MAS-12 manual
701	Insufficient memory capacity	Not enough memory to copy the design in.	Delete unneeded designs.	All	SB series manual; MAS-12 manual
702	100 memory rooms are full	All design slots are used.	Delete unneeded designs.	All	SB series manual; MAS-12 manual
703	Error in design memory system	A copy or delete between memories failed.	Press Reset or power-cycle.	All	SB series manual; MAS-12 manual
704	Bad memory battery	The backup battery ran flat while powered off, so stitch count and frame position were not kept.	Have the dealer replace the battery; if it keeps happening the CPU board may need replacing.	All	SB series manual; Dual Function manual
801	Sequin design error	The sequin design has an error.	Fix the design's sequin commands.	Sequin-equipped	SB series manual
900	Communication error 0	CAN bus messages between boards are not arriving regularly.	Check the cables and power-cycle.	MAS-12, Dual Function	MAS-12 manual; Dual Function manual
901	MC1 communications error / Comm. error 1	CAN communication fault.	Check cables and power-cycle.	All	SB series manual; MAS-12 manual
902	MC2 communications error / Comm. error 2	CAN communication fault.	Check cables and power-cycle.	All	SB series manual; MAS-12 manual
903-915	Comm. error 3 to 15	CAN communication faults on other board addresses.	Power-cycle; if a number repeats, have a technician trace that board's cable.	MAS-12, Dual Function	MAS-12 manual; Dual Function manual
952	Unsupported disk format or I/O error	The USB file system is not supported (lettering).	Reformat the stick as FAT16.	E-T single-heads	E-T compact manual
953	Key disk should be initialized	The USB lock key for lettering is not inserted.	Insert the correct USB lock key.	E-T single-heads	E-T compact manual
954	Wrong key value	The USB lock key does not match this model.	Use the lock key issued for this machine.	E-T single-heads	E-T compact manual

SWF problems and fixes

Fixes are in order — cheapest and most likely first. Filter by symptom or type what you see.

Error 102 overload after a birdnestBirdnestMotorsBobbin

Likely causes: thread wrapped in the hook, bobbin seated wrong, dirty bobbin case, wrong bobbin tension

Power off and cut the nest out from under the needle plate.
Remove the bobbin case, take out the bobbin and clean lint from the case.
Reinsert the bobbin correctly and reset bobbin tension.
Reset top pre-tension, then main tension.
Turn the shaft back to the red 100 mark and power on.

Call a technician if: 102 returns with a clean hook (needle bar drive or driver fault), or the driveline was knocked off its factory marks.

Why birdnests happen: What a nest is, the usual causes in order, and how to clear one safely. — **Why birdnests happen.** What a nest is, the usual causes in order, and how to clear one safely.

Link to this fix

Error 103 / thread not trimmingTrimmerBirdnestSensors

Likely causes: thread under the fixed knife, bent under-thread presser, grease on the trim plunger, worn fixed knife, failed trim solenoid, blown fuse

Remove the needle plates and swing the moving knife out. Clear thread and lint from under the fixed (SWF-engraved) knife.
Check the thin under-thread presser is not bent up.
On multi-heads, move the knife shaft under the table fully left then back right and confirm the trim sensor flag lines up and its LED lights.
Wipe grease off the plunger and the cam groove, oil the plunger and its lever.
Run Machine Test > Trim Sol. Test and listen for two clicks each time (fire, then drop back).
Turn heads off and run a few manual trims while watching the knives.

Call a technician if: the solenoid does not fire, the fixed knife is nicked, or fuses F1/F3 on the joint board keep blowing.

Upper thread path: Every guide from the cone to the needle eye — the fix for most breaks and nests. — **Upper thread path.** Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Upper thread breakingThread breaksNeedleTension

Likely causes: wrong or damaged needle, needle in wrong, dense stitching, poor or right-twist thread, tension too high, burr in the thread path, dry hook, timing

Change the needle and install it correctly; use a size that suits the thread.
Use quality left-twist (Z) embroidery thread; right-twist thread unravels on SWF hooks.
Lower top tension and balance it against the bobbin.
Check for burrs at the presser foot, needle plate hole, head guides and tension discs.
Oil the hook raceway.
If it breaks in the same spot every time, fix the stitch density in the design.

Call a technician if: breaks continue after the above (hook timing, lower dead point, hook clearance 0.5-0.7 mm).

Link to this fix

Skipped stitchesNeedleHook timingTension

Likely causes: bent or wrong needle, timing off, damaged hook point, weak presser foot spring, fabric flagging

Replace the needle and check it is in straight.
Check top thread feeds freely and take-up spring stroke is not excessive.
Make sure the presser foot holds the fabric down.

Call a technician if: the hook point is damaged or needle-hook timing is off.

The I-test for tension: Read the back of a satin column to balance top and bobbin tension. — **The I-test for tension.** Read the back of a satin column to balance top and bobbin tension.

Link to this fix

Loose or uneven stitch tensionTensionLoopsBobbin

Likely causes: dirt in the tension discs, weak bobbin tension, dirty bobbin case spring, poor thread, dry hook

Clean the main and sub tension discs on the tension plate.
Clean the bobbin case and spring and reset bobbin tension.
Oil the hook raceway.
Change to better thread.

Call a technician if: tension still varies with clean parts (timing).

Link to this fix

Needle breaksNeedleHook timing

Likely causes: bent or poor needle, needle too small, needle touching hook point or needle plate hole

Replace with a quality DBxK5 needle sized for the fabric.
Check the needle plate is screwed down tight.
Make sure the needle is fully seated and facing correctly.

Call a technician if: the needle strikes the hook or the needle bar position needs adjusting.

Needle orientation: Long groove to the front, scarf to the hook, pushed fully up. — **Needle orientation.** Long groove to the front, scarf to the hook, pushed fully up.

Link to this fix

PuckeringPuckeringTensionHoop

Likely causes: tension too high, presser foot pressing too hard, needle too large for the thread

Lower top tension.
Fit a lighter presser foot spring if fitted with a heavy one.
Match needle to thread (SWF needle holes suit about #9-#14 DBxK5).
Hoop firmly with the right backing.

Call a technician if: puckering stays with balanced tension and a fresh needle.

Link to this fix

Bad color change / error 300Colour changeMotors

Likely causes: shaft not at 100, take-up lever out of line, needle position signal not sensed, blown color change fuse

Set the main shaft back to 100 degrees.
Run a manual color change and check the panel shows a normal needle position.
Look along the take-up levers; a lever out of line needs adjusting to match the others.
Turn the needle bar by hand and feel for binding.

Call a technician if: fuse F3 on the joint board blows or the color change motor does not move.

Link to this fix

Thread pulls out after trims / long tailsTrimmerThread breaks

Likely causes: trimmed thread length setting, upper thread holder dirty or solenoid failed, picker position, too-short bobbin tail

Set the trimmed thread length to Medium (default) or Long if threads pull out; Short if tails show.
Clean the Velcro strip in the upper thread holder.
Check bobbin thread unwinds smoothly and the bobbin case spring is not too tight.

Call a technician if: the holder solenoid or picker does not fire (check fuse F3).

Link to this fix

Upper thread break not detectedSensorsThread breaks

Likely causes: dirty detector roller, poor tension plate connection, sensor setting at 0

Clean the thread detector roller and its bushing.
Run the Thread Sensing Test and watch each head's lamp.
Check the thread break sensor setting is not 0.

Call a technician if: the tension plate circuit board fails the test.

Link to this fix

Frame limit errors 200-203Frame / pantographHoop

Likely causes: design start point too close to the edge, design larger than the set limit, wrong frame type selected

Jog the frame back inside the limit.
Use the design trace; any red section of the outline means it will hit a limit.
Move the start point or choose a bigger frame.
Check the frame setting is Cap when sewing caps (it auto-rotates designs 180 degrees).

Call a technician if: the limits trip in the middle of the field (frame origin lost).

Hooping layers: Firm, flat and square — the root of most puckering and registration faults. — **Hooping layers.** Firm, flat and square — the root of most puckering and registration faults.

Link to this fix

USB stick not recognised (650 / 952)USBDesign files

Likely causes: wrong file system, extension cable or hub, worn port, off-brand stick

Format the stick FAT16 and copy only designs to it.
Plug directly into the OP box port and check its LED lights.
Try a major-brand stick.
Save designs as DST or SWF format.

Call a technician if: no stick is ever recognised (port or board).

Link to this fix

Machine will not run at allPowerMotors

Likely causes: emergency stop pressed, blown fuse, loose main belt, shaft not at 100, frame outside limit, loose connector

Check the emergency stop is released.
Set the shaft to 100 degrees.
Check the power fuses (control box front) and the main motor fuse.
Check the main drive belt is tight and reseat connectors.

Call a technician if: fuses blow again on power-up.

Link to this fix

Diagrams and photos

Tap any picture to enlarge it. Diagrams are generic — your machine's threading chart and manual take priority.

SWF single-head embroidery machine on a table with control panel and thread stand — An SWF single-head, multi-needle embroidery machine with its control panel at the side and the thread tree above the needle case. Photo: HenkvD, CC BY-SA 4.0, via Wikimedia Commons

Close-up of the needle case on an SWF embroidery machine sewing red lettering — Front of an SWF needle case: one tension knob and thread path per needle across the top, needles below sewing lettering in a hoop. Photo: HenkvD, CC BY-SA 4.0, via Wikimedia Commons

Row of SWF embroidery heads with hooped white garments — Several SWF embroidery heads side by side, each with a white garment clamped in a hoop under the needles. Photo: Lizzy Shaanan (ליזי שאנן), via PikiWiki - Israel, CC BY 2.5, via Wikimedia Commons

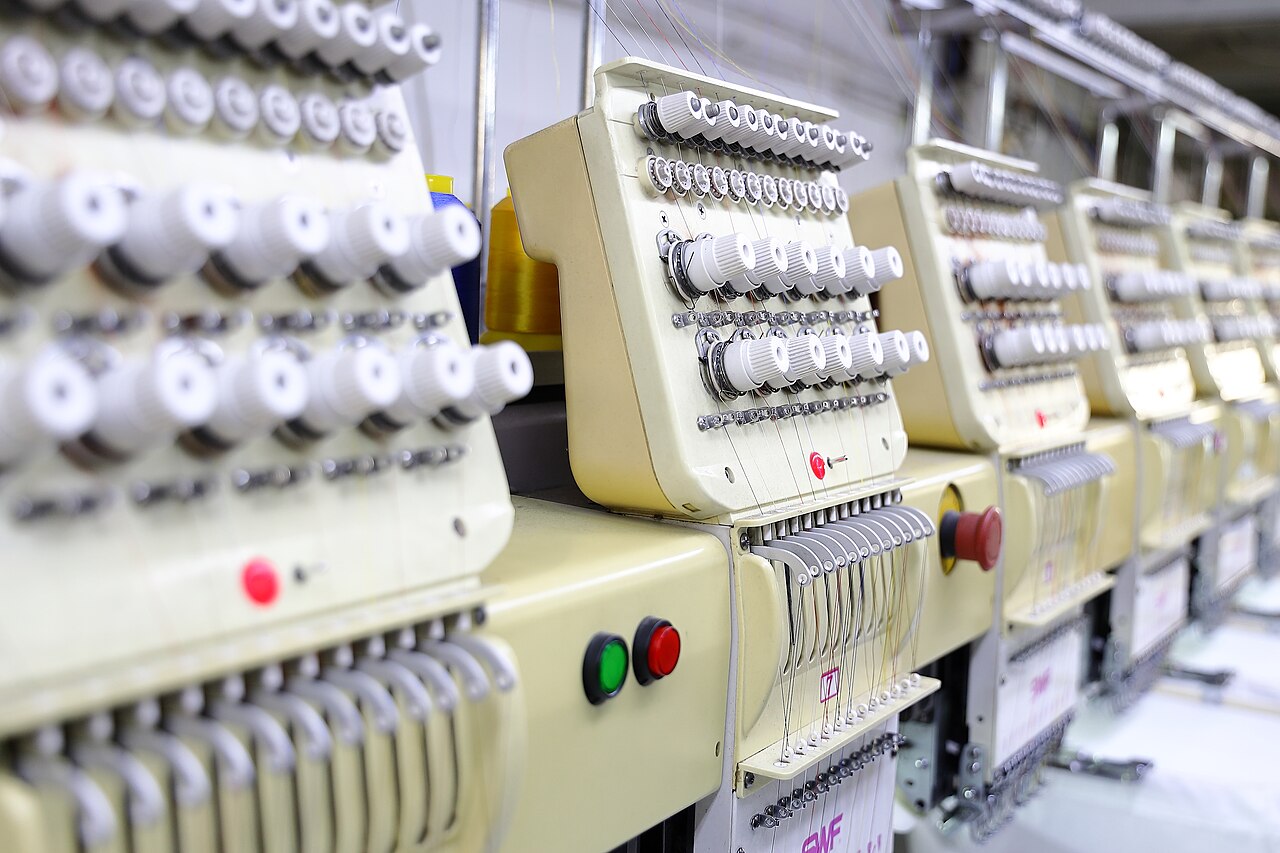

Rows of white tension knobs on SWF multi-head embroidery machines — The upper-thread tension knobs on a row of SWF embroidery heads. Each needle has its own knob; turning it changes how hard the top thread is held. Photo: Lizzy Shaanan (ליזי שאנן), via PikiWiki - Israel, CC BY 2.5, via Wikimedia Commons

Black cap with orange and white embroidered lettering — A machine-embroidered logo on the front of a black baseball cap. Photo: Methapun, CC BY-SA 4.0, via Wikimedia Commons

A finished trucker cap with an embroidered front panel, in an embroidery shop. Photo: Methapun, CC BY-SA 4.0, via Wikimedia Commons

White satin-stitched monogram letters F and A on linen — White satin-stitch letters on white linen. Satin columns show up the stitch angle and density. Photo: Vassil, Public domain, via Wikimedia Commons

Raised satin-stitch monogram next to a centimetre ruler — A padded satin-stitch monogram with a ruler for scale, showing how narrow the satin columns are. Photo: Tangopaso, Public domain, via Wikimedia Commons

Close-up of dense multicolour embroidery stitches with a needle above — Close-up of dense embroidery stitches and the needle above them, from an embroidered banner. Photo: Jure Pogačnik Ajdič, CC BY-SA 4.0, via Wikimedia Commons

Machine-embroidered black and white portrait of Plutarch — A detailed black-and-white portrait sewn on an embroidery machine, made of fine fill and satin stitches. Photo: Darylsteve, CC BY-SA 4.0, via Wikimedia Commons

Five-minute diagnosis: Where to start when the machine stops or sews badly. — **Five-minute diagnosis.** Where to start when the machine stops or sews badly.

Bobbin drop test: Set bobbin tension before you touch the top tension. — **Bobbin drop test.** Set bobbin tension before you touch the top tension.

Hook timing: What correct hook-to-needle timing and clearance look like. — **Hook timing.** What correct hook-to-needle timing and clearance look like.

Presser foot height: Too high causes flagging and loops; too low drags and breaks thread. — **Presser foot height.** Too high causes flagging and loops; too low drags and breaks thread.

Cleaning and oiling points: Daily and weekly care points on a multi-needle head. — **Cleaning and oiling points.** Daily and weekly care points on a multi-needle head.

Maintenance schedule

Interval	Task	Notes
Every 3-4 hours of running	Put a small amount of oil on the hook raceway	Remove the bobbin case first. Too much oil in the hook causes trim faults and thread breaks.
Daily	Blow lint out around the hook with compressed air	Power off first.
Daily (E-T full size)	Fill the oil funnel	MAS-12 tank: fill when below the red line, about every 2 weeks.
Every 3 days	Oil the needle plate lubrication holes / bed cover holes	Three holes on the E-T bed cover.
Weekly	Oil the take-up lever guide rail
Every 2-3 weeks	Oil the joint between moving and fixed trim knives
Periodically	Grease the take-up lever cam and drive parts; check drive belt tension	Belt tension checked with a sound-wave tension gauge on E-T.
After oiling	Run 2-3 minutes without stitching	Stops oil staining thread and fabric.
Oil type	SWF spindle oil or ISO VG18	SWF does not cover damage from poor oiling.

Settings that cause stitch problems

Thread break sensor (stitches): default 3 stitches. Setting it to 0 turns detection off, so a broken thread can sew empty for a whole color.
Thread break method (sensitivity): Low, Medium or High. Too high gives false stops on slick or thin threads.
Trimmed thread length: default Medium. Short causes thread to pull out of the needle after trims; Long leaves tails on the front.
Trimming by jump frequency / jump length: controls when a run of jump codes in a DST becomes a trim. Set wrong, the machine either trims constantly or drags long jumps across the work.
Start/end filter: default 0.0 mm. Raising it (up to 0.5 mm) filters tiny first and last stitches that cause thread breaks at start points.
Inching speed and inching stitches: the slow start after a trim (default 180 rpm, 2 stitches). Too fast and the thread pulls out before it locks.
Max speed / embroidery speed: single-heads default to 800 rpm working speed with a 1,200 rpm ceiling (MA-6: 1,000). Caps and dense designs need lower speed. "Speed switching data" drops speed 30-50 rpm for heavy items.
Frame setting: must be Cap for caps; it rotates designs 180 degrees. Leaving it on Flat makes cap designs sew upside down and hit limits.
Frame start angle (A/B area): default 240 degrees; changing it alters when the frame moves relative to the needle and can cause registration or needle-deflection problems.
Power-on auto origin: if enabled with a wrong origin, the machine can reset settings; set the frame origin correctly first.

Official manuals, FAQs and support

Straight from SWF. Links open the maker's own site.

Stitch It International SWF support librarySWF's US distributor (swfemb.com redirects to Stitch It); manuals and parts books by seriesstitch-it-support-site.web.app E-T Compact single-head user manual (PDF)parameters, error table, USB FAQcdn.shopify.com · PDF E-T full-size single-head user manual (PDF)oiling chart and symptom-based troubleshootingcdn.shopify.com · PDF E Dual Function operation manual (PDF)error tables including 900-915cdn.shopify.com · PDF SWF Errors #102 & #103 (Stitch It dealer PDF)birdnest, trim plunger and trim test procedures3.amazonaws.com · PDF SWF SB series user manual, error messages (ManualsLib copy)full numbered code tablemanualslib.com SWF MAS-12 user manual, error display (ManualsLib copy)MAS-12 codes, specs and oiling chartmanualslib.com

Frequently asked questions

What does SWF error 102 mean?

It is a main shaft overload: the shaft could not turn freely. The SWF distributor says the usual cause is thread wrapped in the hook from a birdnest. Cut the nest out, clean and reseat the bobbin case, reset tensions, set the shaft to 100 and power-cycle.

How do I fix SWF error 103?

The trim knives did not return to their home position, so the trim sensor never reset. Pull the needle plates, clear thread from under the fixed knife, then clean grease off the trim plunger and oil it. Use the trim solenoid test to confirm it fires and drops back.

What do SWF errors 200, 201, 202 and 203 mean?

They are frame limit stops in +X, -X, +Y and -Y. Jog the frame back the opposite way, then trace the design and move it or use a larger frame before restarting.

What are SWF errors 204 and 205?

X-axis and Y-axis driver faults. Power-cycle first; if they come back, a technician needs to test the driver boards and frame motors.

Why won't my SWF read my USB stick?

SWF panels expect a FAT16 file system and a direct connection to the OP box. Reformat a small major-brand stick, avoid hubs and extension cables, and save designs as DST or SWF format.

What file format does an SWF embroidery machine use?

SWF machines read Tajima DST and save in either SWF format (.SST) or Tajima format (.DST). They also recognise ZSK and Barudan data and show error 611 or 612 if those files are bad.

How often should I oil an SWF embroidery machine?

Oil the hook raceway every 3-4 hours of running, the needle plate holes every three days, the take-up lever rail weekly and the trim knives every two to three weeks. Use SWF spindle oil or ISO VG18 and run the machine empty for a few minutes afterwards.

Machine's fine — but the design still sews badly?

Density, underlay, pull compensation and stitch order cause more "machine problems" than machines do. EasyDigitizer builds production-ready files for SWF in your browser.

Start digitizing — free

Other machines: Baby Lock · BAI · Barudan · Bernina · Brother · Happy · Husqvarna Viking · Janome · Melco · PFAFF · Ricoma · Tajima · ZSK · Any machine
