Troubleshooting any embroidery machine

Brand-independent fixes for the problems every embroidery machine has — thread breaks, birdnests, looping, puckering, needle breaks, registration, trims and file errors.

Short answer

Nine out of ten embroidery machine problems are fixed by the same four things, in this order: rethread the upper thread (presser foot up, every guide, through the take-up lever), fit a new needle of the right size facing the right way, clean and check the bobbin, and re-hoop the fabric tighter with the right backing. Only after that should you look at tension screws, timing or the design file.

Problems and fixes

Fixes are in order — cheapest and most likely first. Filter by symptom or type what you see.

Upper thread keeps breakingThread breaksNeedleTension

Likely causes: thread path missed a guide or the tension discs, a damaged or wrong-size needle, tension too tight, old or poor thread, a burr on the needle plate or hook, speed too high for the design

  1. Rethread that needle from the cone to the eye, following the threading diagram on the head. On home machines raise the presser foot first so the tension discs open and the thread seats between them.
  2. Fit a new needle. Use 75/11 for everyday 40 wt polyester or rayon, 80/12 or 90/14 for caps, heavy fabric and metallics, and 65/9 or 70/10 for very small text. Make sure the long groove faces the front and the needle is pushed fully up.
  3. Look at the broken end. A clean cut points to a burr or the trimmer; a frayed, shredded end points to the needle, tension or hook timing.
  4. Check that the cone sits directly under its guide on the thread stand and that the thread is not caught on the cone's notch or wound around the spool pin.
  5. Slow the machine down by 100–200 stitches per minute, especially for dense fills, small lettering and caps.
  6. Do the I-test (see the tension diagram) and loosen the upper tension if the back shows mostly bobbin thread.
  7. Feel the needle plate hole, the hook point and the thread guides for sharp spots with a nylon stocking or fingernail. Polish small burrs with very fine emery cloth or replace the part.
  8. Try a known-good cone of thread. Old rayon dries out and breaks; cheap polyester can have weak spots.

Call a technician if: breaks continue on every needle with fresh thread and needles, the hook point is visibly damaged, or the breaks started after a needle strike (timing may have slipped).

Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Thread shreds or frays at the needleThread breaksNeedleHook timing

Likely causes: needle too small for the thread, needle twisted, needle eye damaged, hook timing slightly off, density too high

  1. Fit a new needle one size larger and make sure it is not rotated in the clamp.
  2. For metallic threads use a metallic or large-eye needle, slow down to about half speed and use a thread net or vertical stand.
  3. Check the design: very dense fills (rows closer than about 0.35 mm) and stacked layers shred thread. Reduce density or remove hidden layers before sewing.
  4. If shredding continues on several needles, have the hook timing and needle-to-hook clearance checked.

Call a technician if: the hook makes a clicking sound, the needle hits the hook, or new needles shred immediately.

Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Birdnest (thread wad under the fabric)BirdnestThread breaksTension

Likely causes: upper thread out of the tension discs or take-up lever, fabric flagging, bobbin problem, thread caught on the spool

  1. Stop the machine. Cut the threads from underneath; never pull the fabric or the hoop to free a nest.
  2. Remove the hoop, clear all thread from the hook area and under the needle plate, and check the needle for damage.
  3. Rethread the upper thread completely, making sure it passes through the take-up lever and sits between the tension discs.
  4. Re-hoop tighter and lower the presser foot height if the fabric was bouncing.
  5. Check the bobbin: correct direction, not empty, no lint under the bobbin-case spring, bobbin fully seated.

Call a technician if: nests keep forming at the very first stitch on a correctly threaded needle — the hook may be damaged or out of time.

Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Loops on top of the embroideryLoopsTensionThread breaks

Likely causes: upper tension too loose, thread out of the check spring or tension discs, presser foot too high, needle too large for the thread

  1. Rethread, making sure the thread is pulled firmly into the tension discs and the check spring.
  2. Tighten the upper tension for that needle a little at a time and re-run the I-test.
  3. Lower the presser foot (hopping foot) so it just clears the fabric at the bottom of its stroke.
  4. Check that the check spring moves freely and is not broken.
Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Bobbin thread showing on topBobbinTension

Likely causes: upper tension too tight, bobbin tension too loose, wrong bobbin case for embroidery, lint in the bobbin case

  1. Remove the bobbin case, blow out lint and check the tension with the drop test or a gauge.
  2. Loosen the upper tension on the affected needle and re-run the I-test.
  3. Make sure the upper thread is not caught or wrapped around a guide, which adds tension.
  4. On home machines, use the embroidery bobbin case if your machine has one, and use the bobbin thread weight it recommends (usually 60 wt or 90 wt).
The I-test for tension. Read the back of a satin column to balance top and bobbin tension.

Link to this fix

Needle breaksNeedleHoopHook timing

Likely causes: needle hitting the hoop or cap frame, bent needle, pulling the fabric while sewing, presser foot too low, needle too fine for the material, design too dense, timing out

  1. Run a trace (contour check) before sewing to make sure the design stays inside the hoop's sew field.
  2. Replace the needle and check that the needle bar and presser foot are not bent.
  3. Use a larger or stronger needle for caps, canvas and heavy seams (80/12–90/14, titanium-coated if available).
  4. Never pull or push the hoop while the machine sews.
  5. Check that the correct hoop is selected on the machine.

Call a technician if: the needle hit the hook or the needle plate — check the hook for burrs and the timing before sewing again.

Needle orientation. Long groove to the front, scarf to the hook, pushed fully up.

Link to this fix

Puckering around the designPuckeringHoop

Likely causes: fabric loose or stretched in the hoop, too light a backing, density too high, no underlay, tension too tight

  1. Re-hoop with the fabric firm but not stretched; knit ribs should stay straight.
  2. Use cut-away backing on knits and stretchy fabrics; add a second layer for dense designs.
  3. Loosen upper tension slightly if the I-test shows the top thread pulling tight.
  4. In the design, add underlay and reduce density, or reduce stitch count on large fills.
Presser foot height. Too high causes flagging and loops; too low drags and breaks thread.

Link to this fix

Outlines don't line up (registration)RegistrationHoopPuckering

Likely causes: fabric moving in the hoop, not enough backing, no pull compensation in the design, loose pantograph or frame

  1. Hoop tighter, use a firmer backing, and add a temporary spray adhesive for slippery fabrics.
  2. Check that the hoop or frame is clipped firmly into the arms and that the frame doesn't wobble.
  3. In the design, add pull compensation (about 0.2–0.4 mm on wovens, more on knits) and sew outlines after the fills they surround.
  4. If every design is shifted in the same direction, have the pantograph belts and drive checked.
Presser foot height. Too high causes flagging and loops; too low drags and breaks thread.

Link to this fix

Gaps between fills and outlinesRegistrationPuckering

Likely causes: fabric pull, too little overlap or pull compensation in the design, loose hooping

  1. Hoop firmer and add backing.
  2. Increase pull compensation and overlap between touching objects in the design.
  3. Use underlay so the fabric is stabilized before the cover stitches pull it.
Presser foot height. Too high causes flagging and loops; too low drags and breaks thread.

Link to this fix

Trimmer not cutting or leaving long tailsTrimmerThread breaks

Likely causes: lint or thread wrapped round the knife, dull moving knife, trimmer turned off on the machine, design has no trim commands

  1. Remove the needle plate and clear lint and thread from the moving and fixed knives.
  2. Check that trimming is enabled in the machine settings and that the jump-to-trim setting matches how the design marks trims.
  3. Re-export the design with trims included.
  4. Have the knife replaced or sharpened if it is chipped or cuts only sometimes.
Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Skipped stitchesNeedleHook timingLoops

Likely causes: wrong or damaged needle, needle rotated, fabric flagging, hook timing, thread too heavy for the needle

  1. New needle, correct size, long groove facing front, pushed fully up.
  2. Lower the presser foot and hoop tighter to stop flagging.
  3. Use a ballpoint needle on knits.
  4. If skips continue on every needle, the hook timing is likely off.

Call a technician if: skips started after a needle strike or a hard nest.

Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

False thread-break stopsSensorsThread breaks

Likely causes: thread not wrapped around the sensor wheel, lint in the sensor, sensitivity set too high, very slippery or fine thread

  1. Rethread the needle and make sure the thread wraps the sensor wheel as shown on the head.
  2. Clean lint from the sensor wheel and check that it spins freely.
  3. Lower the thread-break sensitivity or increase the number of stitches before a break is detected (setting names vary by brand).
Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.

Link to this fix

Machine won't read the design fileDesign filesUSB

Likely causes: wrong format for the machine, design larger than the selected hoop, USB stick formatted wrongly, long file names or too many files

  1. Export in the machine's format: DST for most commercial machines, TAP for Happy, PES for Brother and Baby Lock, JEF for Janome, VP3 for Husqvarna Viking and Pfaff, EXP for Melco and Bernina.
  2. Check the design fits the hoop or frame you plan to use.
  3. Use a small USB stick (8–32 GB) formatted FAT32, put designs in the root or a shallow folder, and keep file names short with no special characters.
  4. Try a different USB stick or port.

Link to this fix

Design sews in the wrong place or hits the frameFrame / pantographHoopRegistration

Likely causes: origin not set, wrong hoop selected, design start point offset, frame not centred

  1. Select the correct frame or hoop on the panel, then move the frame to the centre of the area you want to sew.
  2. Run a trace (outline check) before every new job.
  3. On commercial machines, set the start point (origin) after positioning the frame, not before.
Hooping layers. Firm, flat and square — the root of most puckering and registration faults.

Link to this fix

Machine is loud or knockingNoiseOilingHook timing

Likely causes: dry hook, lint build-up, loose needle plate or screws, a damaged hook, worn parts

  1. Clean the hook area and oil it as the manual specifies.
  2. Tighten the needle plate screws.
  3. Stop sewing if the noise is a sharp knock or grinding — that is mechanical damage.

Call a technician if: the noise continues after cleaning and oiling.

Hook timing. What correct hook-to-needle timing and clearance look like.

Link to this fix

Diagrams and photos

Tap any picture to enlarge it. Diagrams are generic — your machine's threading chart and manual take priority.

A long multi-head embroidery machine in a garment factory, with a row of heads, their thread stands and finished sports jerseys. Photo: USAID Pakistan, Public domain, via Wikimedia Commons
A multi-head machine embroidering gold motifs onto a long length of fabric, one design per head. Photo: Srini297, CC BY-SA 4.0, via Wikimedia Commons

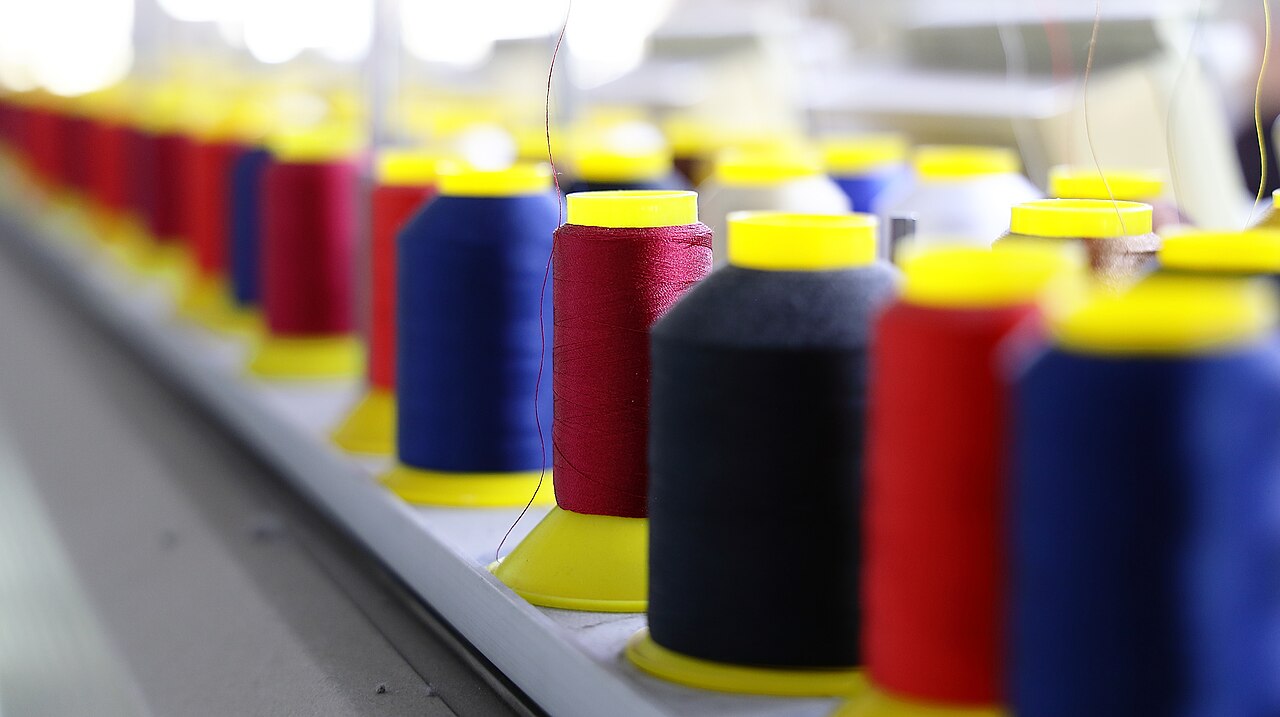

Cones of embroidery thread standing on the thread stand of a multi-head machine. Photo: Lizzy Shaanan (ליזי שאנן), via PikiWiki - Israel, CC BY 2.5, via Wikimedia Commons

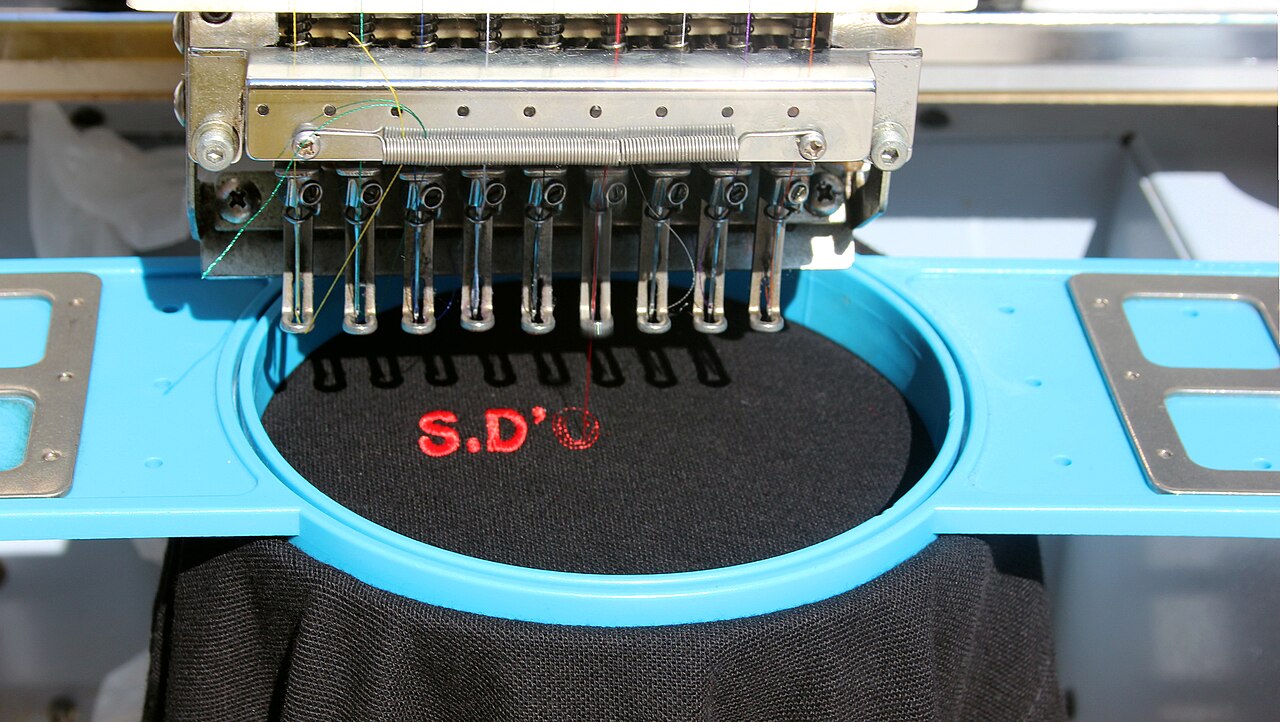

A multi-needle embroidery head stitching on a garment held in a blue tubular hoop. Photo: Usien, CC0, via Wikimedia Commons

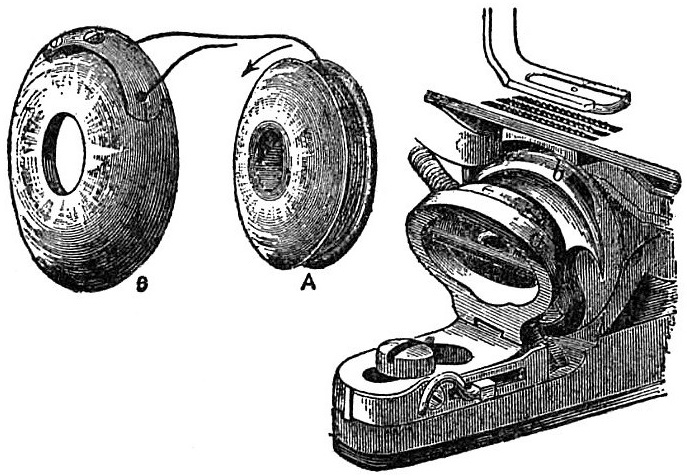

Old engraving of a rotary hook with its bobbin case and bobbin. The hook spins and catches the top thread to form each stitch. Photo: Unknown author, Public domain, via Wikimedia Commons

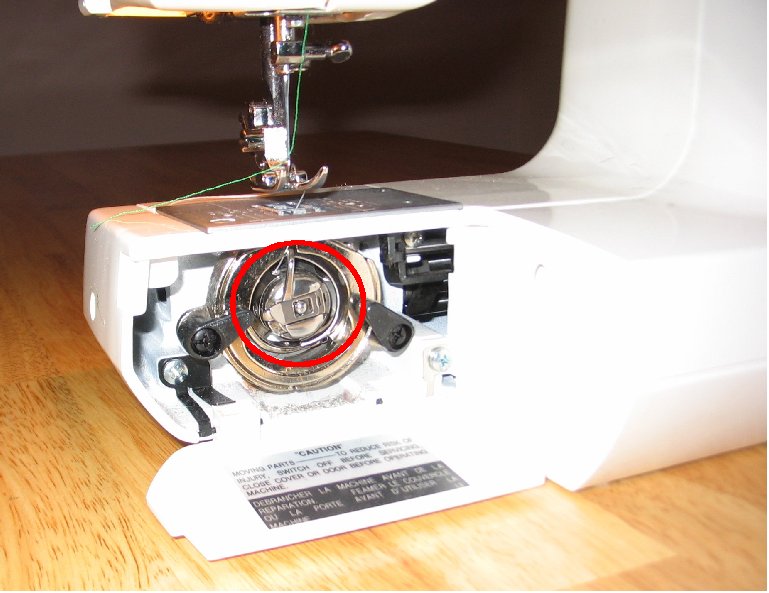

The rotary hook (circled in red) behind the front access door of a home machine, with the bobbin case fitted. Photo: Jim Thomas, CC BY-SA 3.0, via Wikimedia Commons

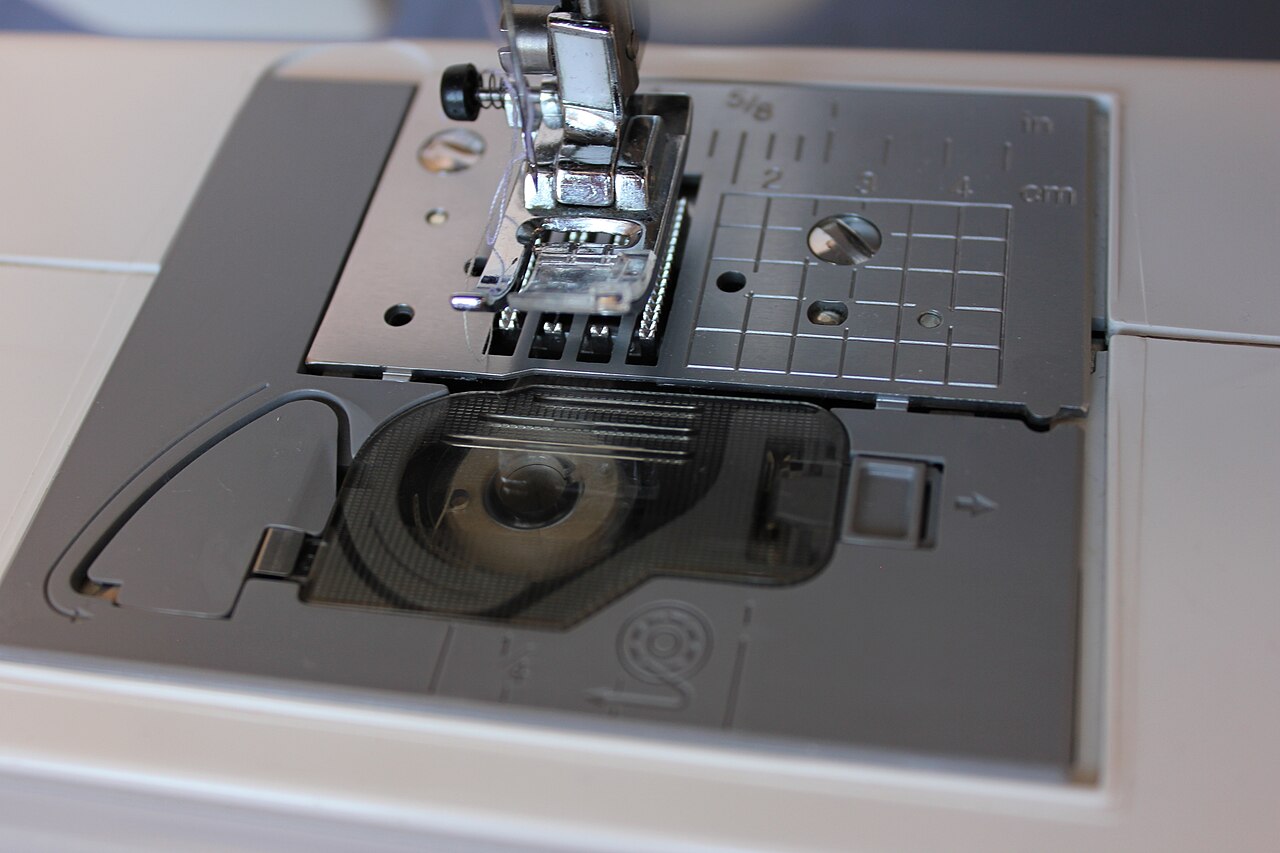

A horizontal (drop-in) hook with a wound bobbin, seen through the clear cover under the needle plate. Photo: Popugayka, CC BY-SA 3.0, via Wikimedia Commons

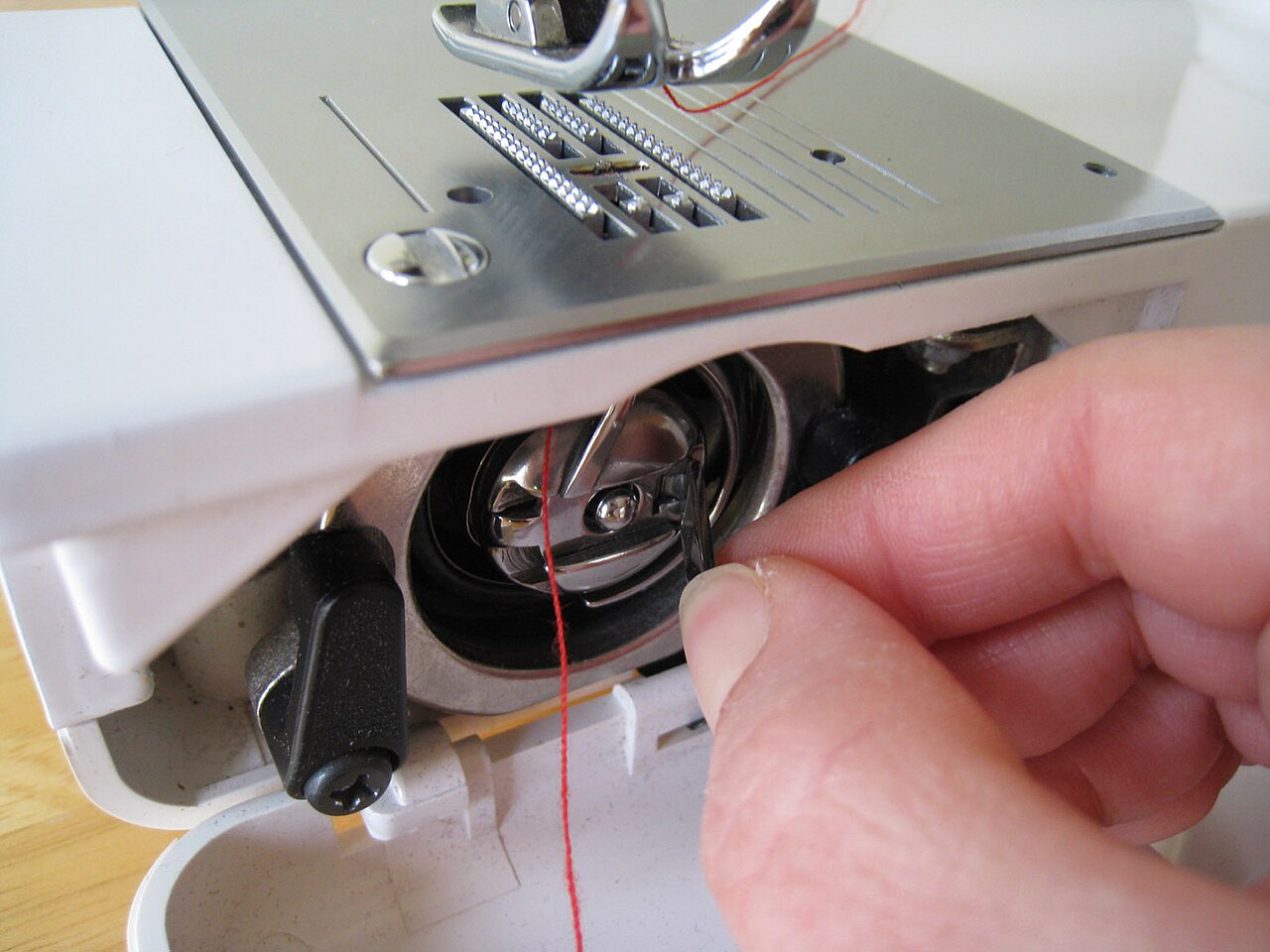

Taking the bobbin case out of the hook on a front-loading machine. Photo: Dvortygirl, CC BY-SA 3.0, via Wikimedia Commons

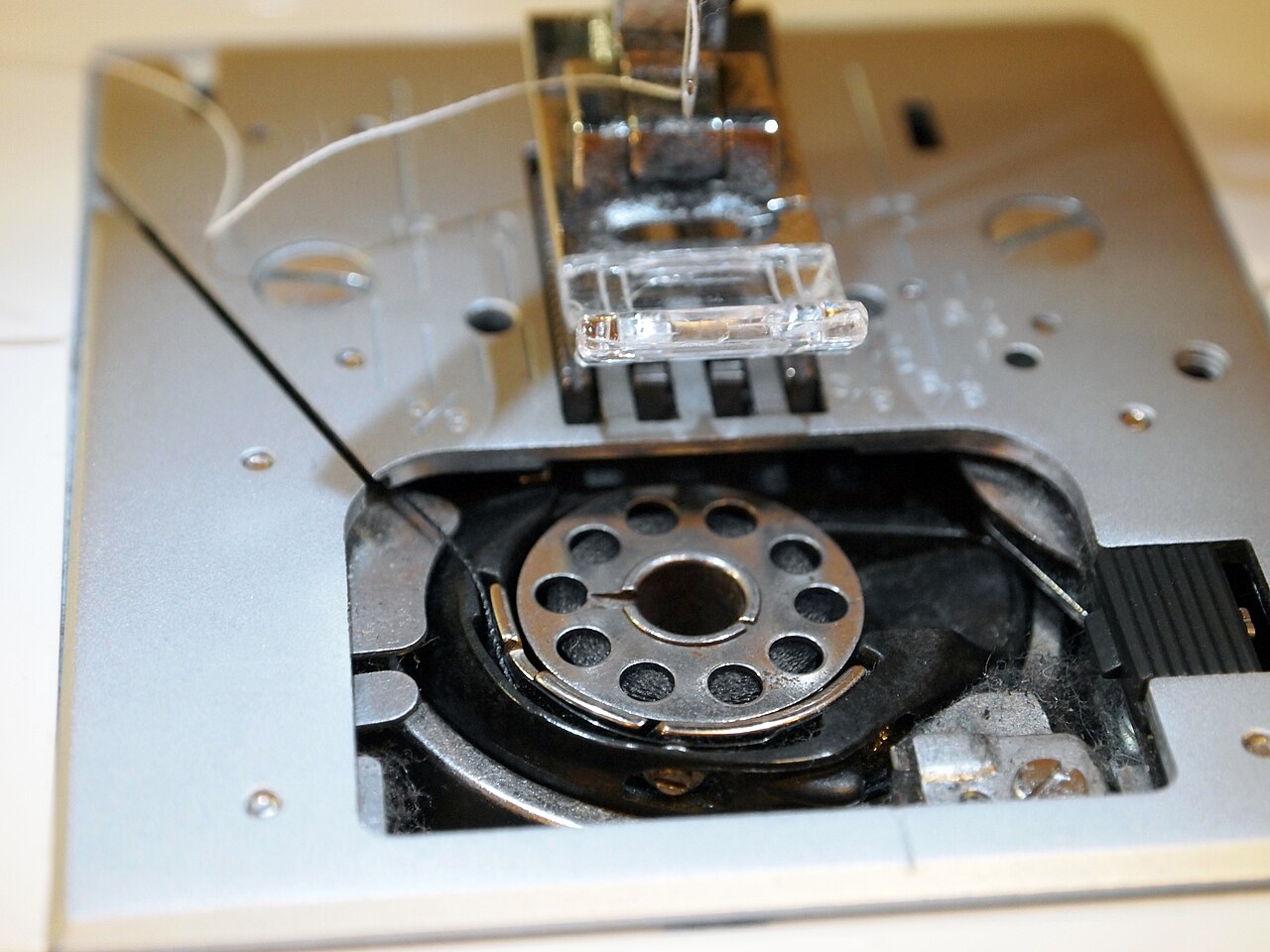

A metal bobbin sitting in the hook with the needle plate removed. Photo: Bekathwia, CC BY-SA 2.0, via Wikimedia Commons

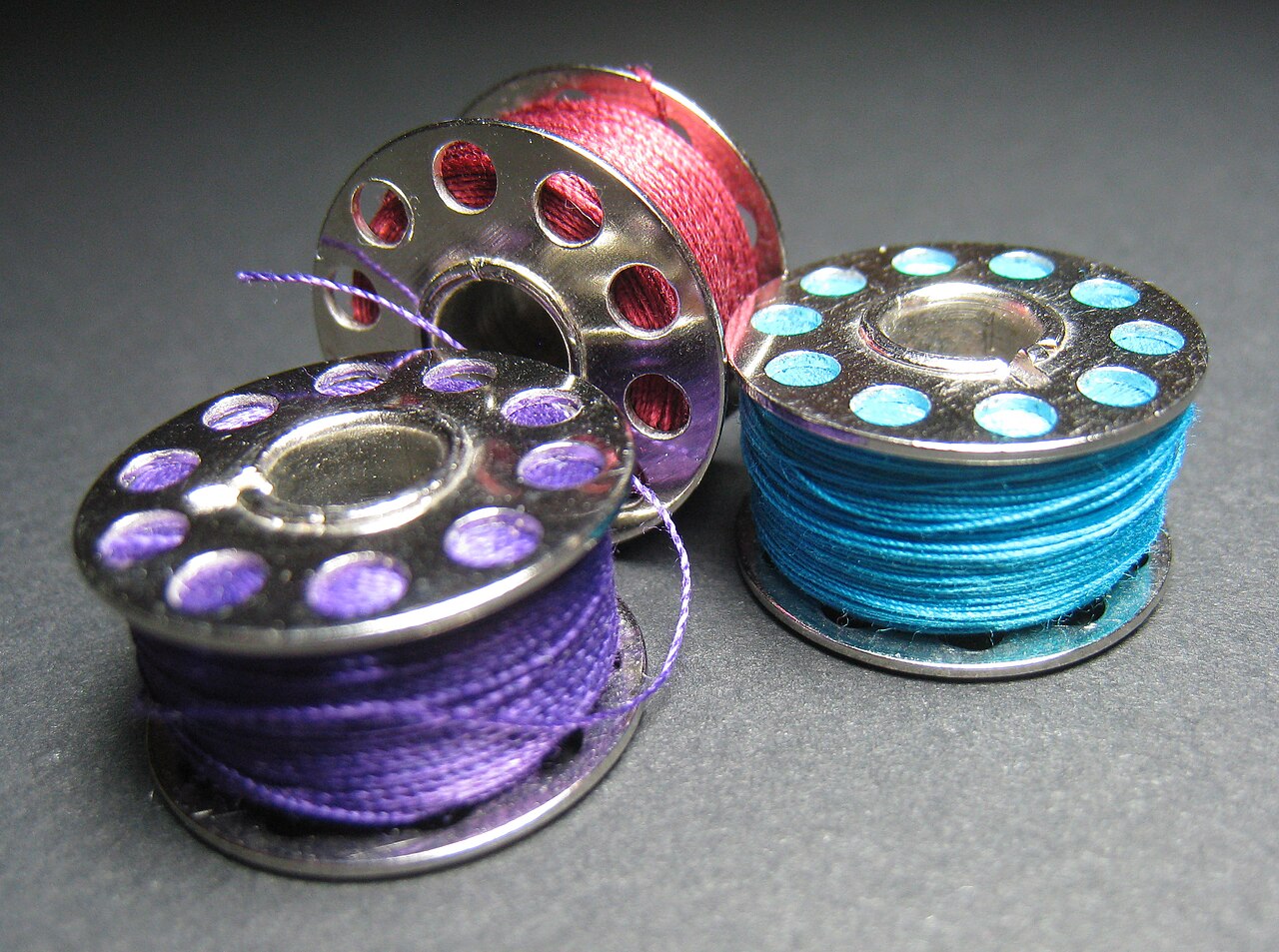

Metal bobbins wound with thread. Even, firm winding helps keep the bottom tension steady. Photo: Dvortygirl, CC BY-SA 3.0, via Wikimedia Commons

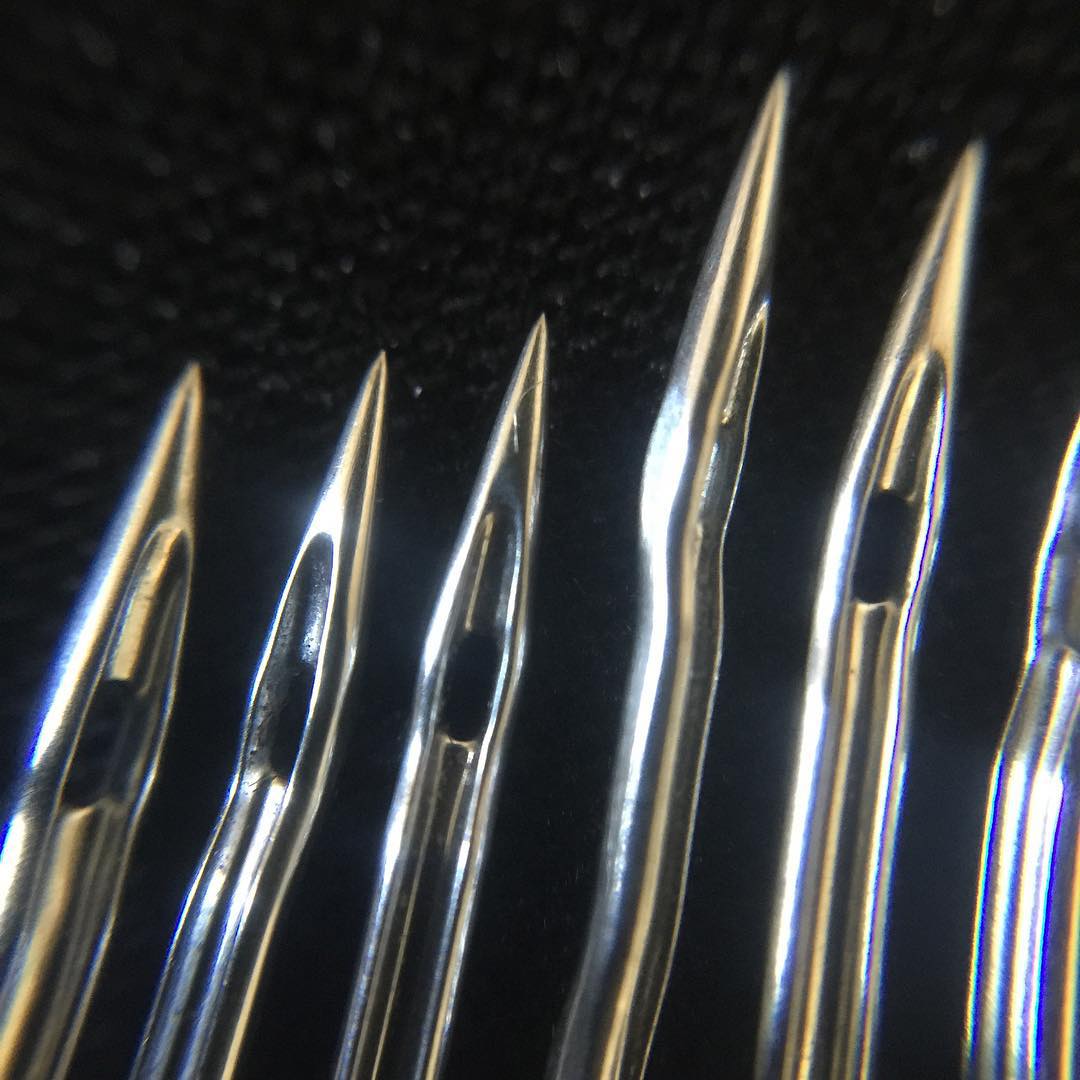

Macro photo of sewing-machine needle tips and eyes. A burred or bent point causes thread breaks and skipped stitches. Photo: gina pina, CC BY 2.0, via Wikimedia Commons

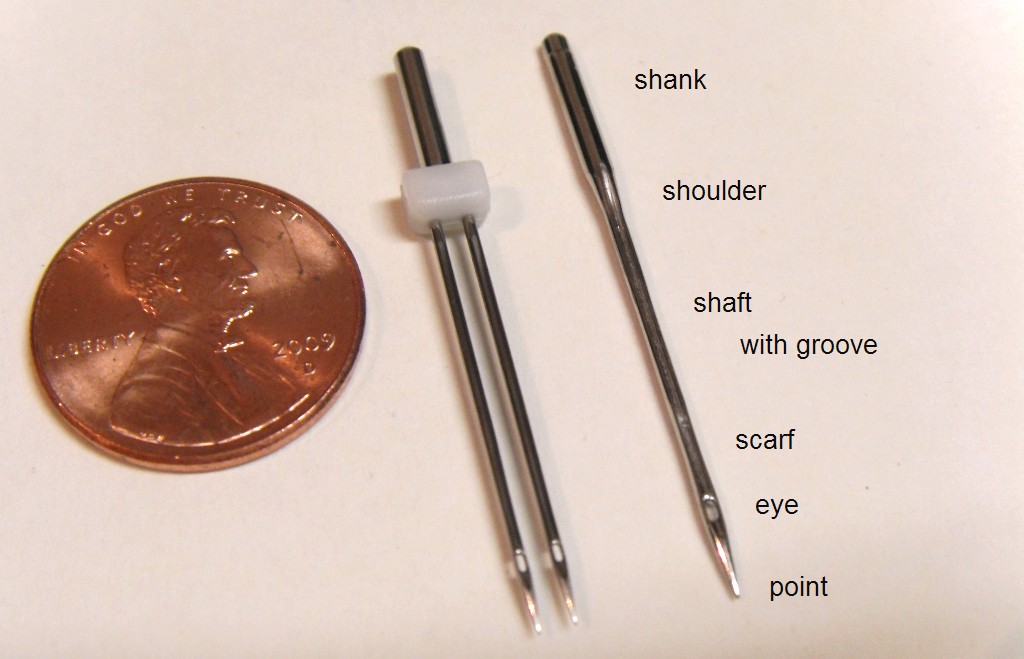

The parts of a machine needle: shank, shoulder, shaft with groove, scarf, eye and point. Photo: Txinviolet, Public domain, via Wikimedia Commons

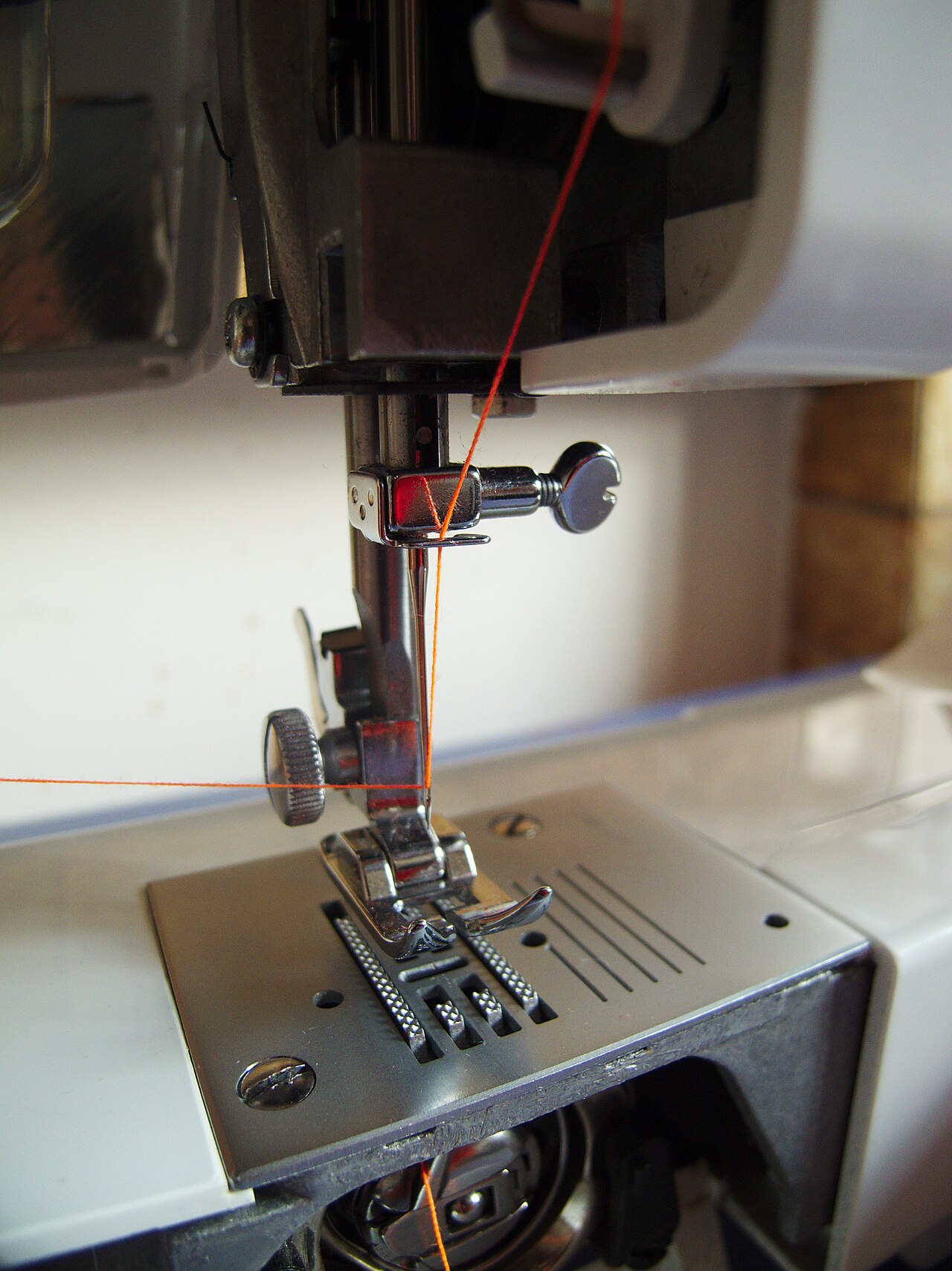

Needle, presser foot and needle plate with the top thread running down through the needle eye. Photo: Naberacka, Public domain, via Wikimedia Commons

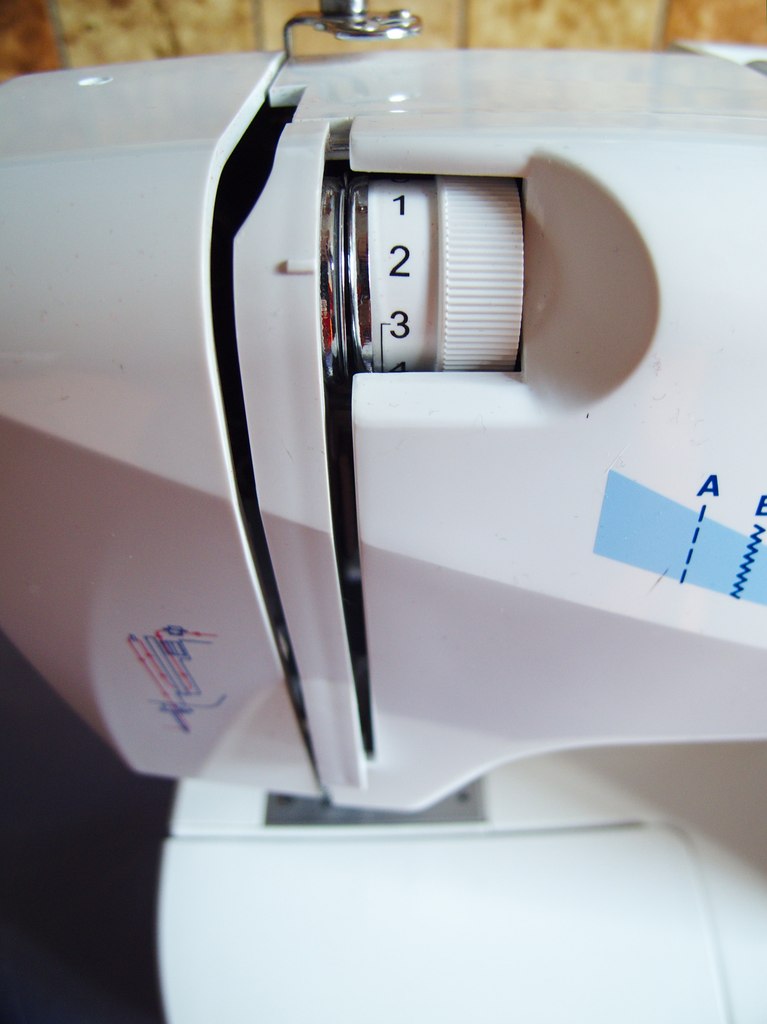

An upper-thread tension dial on a home machine. Higher numbers hold the top thread tighter. Photo: Naberacka, Public domain, via Wikimedia Commons

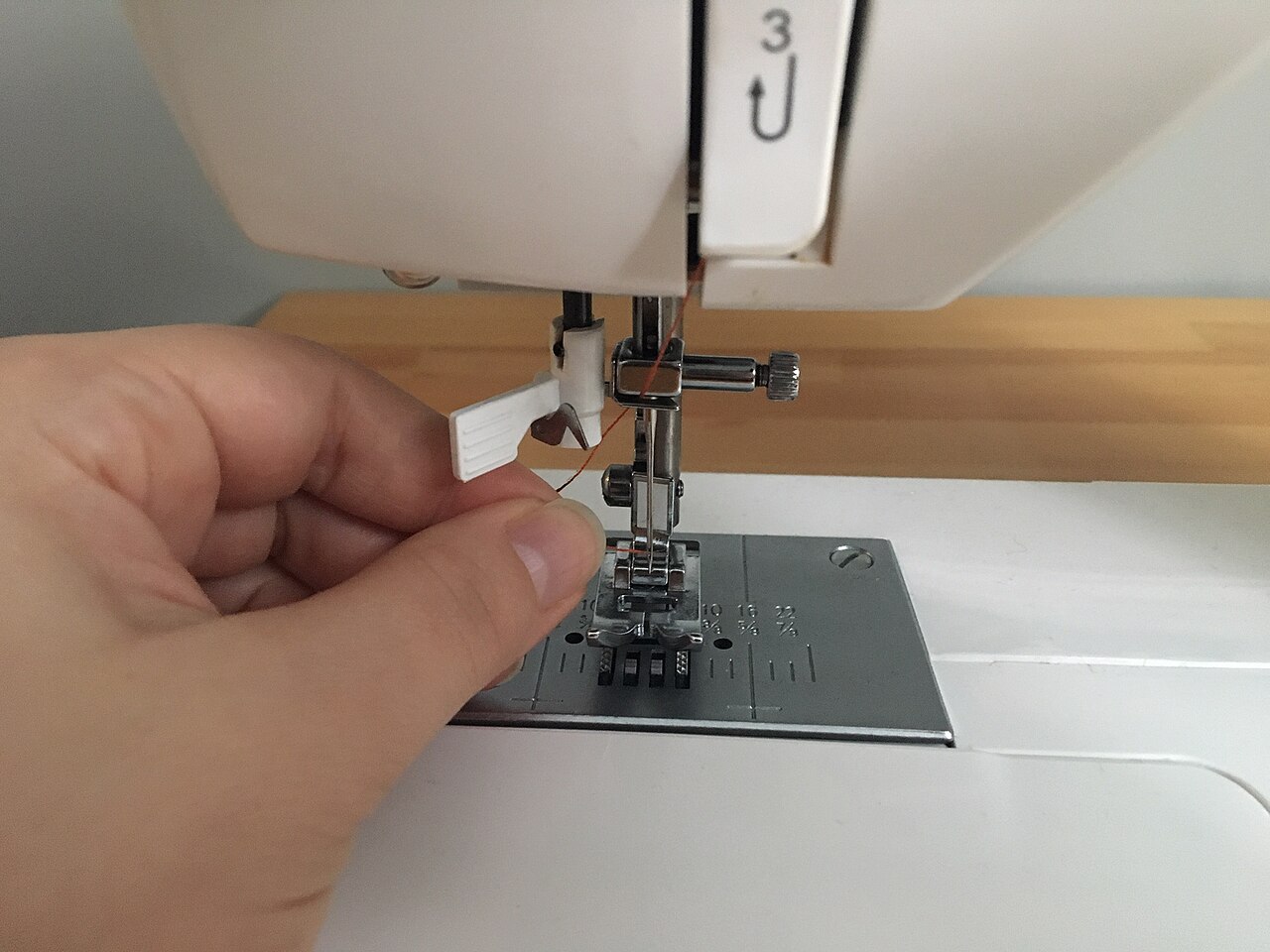

Pulling the thread into the tension discs while threading. If the thread misses the discs the top thread runs loose. Photo: Most Craft, CC BY 2.0, via Wikimedia Commons

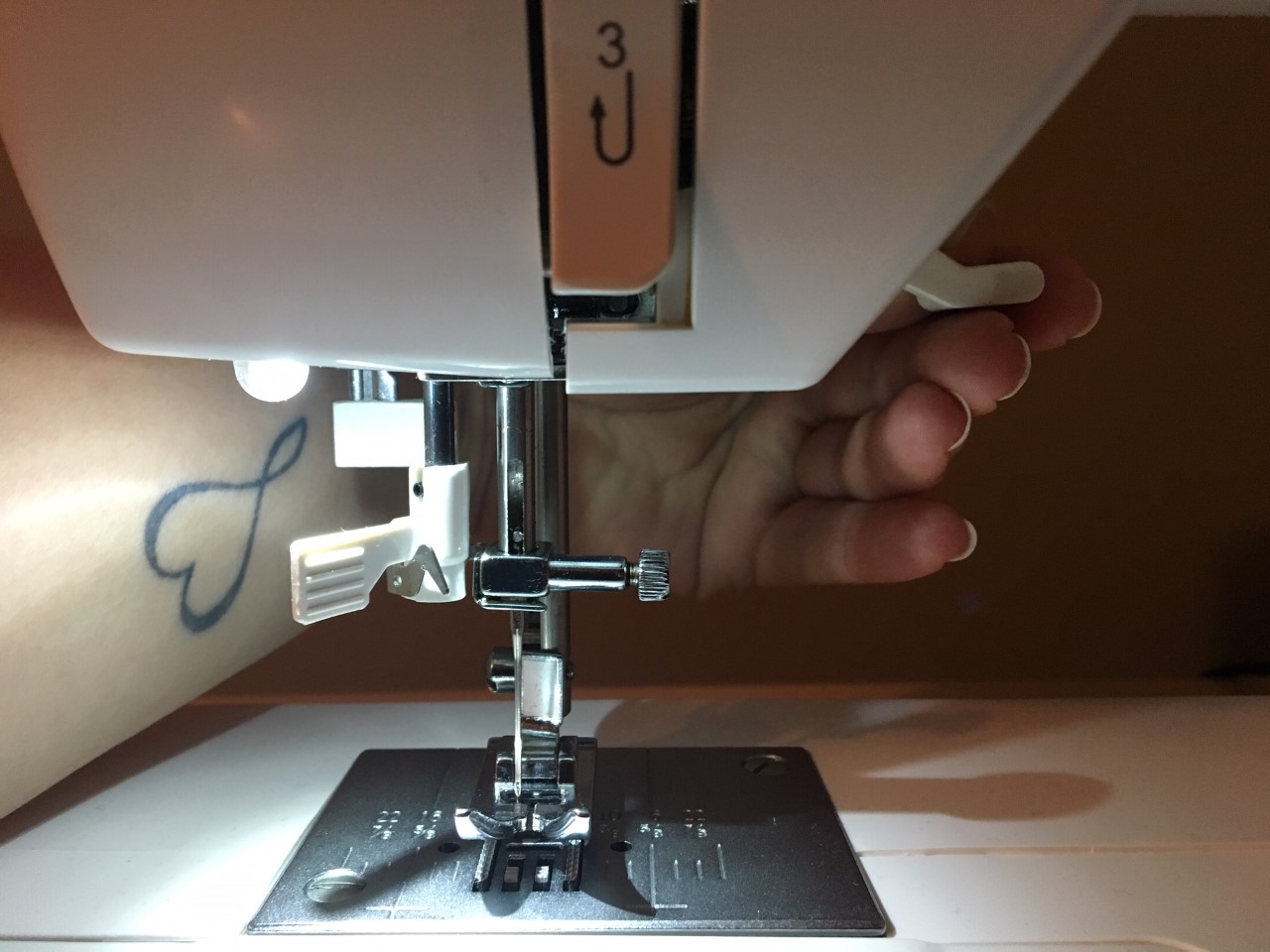

The thread take-up lever. It must be threaded, or the top thread will tangle under the fabric. Photo: Most Craft, CC BY 2.0, via Wikimedia Commons

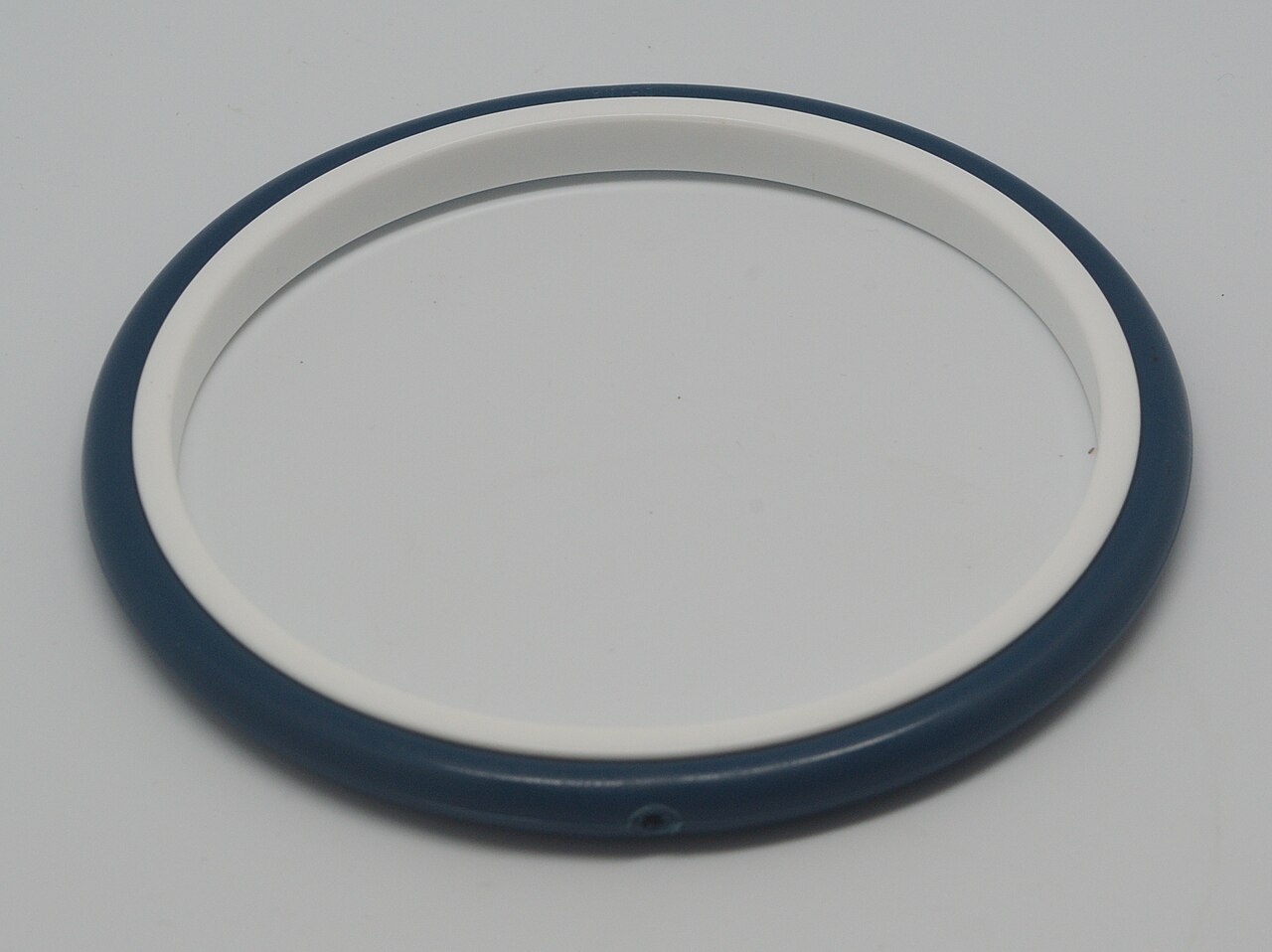

A plain two-part plastic embroidery hoop: the inner ring presses the fabric into the outer ring. Photo: Clément Bucco-Lechat, CC BY-SA 3.0, via Wikimedia Commons
A machine-embroidered eagle crest on a polo shirt: satin borders, fill areas and lettering. Photo: Gidutex, CC BY-SA 3.0, via Wikimedia Commons
A machine-embroidered logo on the front of a black baseball cap. Photo: Methapun, CC BY-SA 4.0, via Wikimedia Commons
A finished trucker cap with an embroidered front panel, in an embroidery shop. Photo: Methapun, CC BY-SA 4.0, via Wikimedia Commons
White satin-stitch letters on white linen. Satin columns show up the stitch angle and density. Photo: Vassil, Public domain, via Wikimedia Commons
A padded satin-stitch monogram with a ruler for scale, showing how narrow the satin columns are. Photo: Tangopaso, Public domain, via Wikimedia Commons
Close-up of dense embroidery stitches and the needle above them, from an embroidered banner. Photo: Jure Pogačnik Ajdič, CC BY-SA 4.0, via Wikimedia Commons
A detailed black-and-white portrait sewn on an embroidery machine, made of fine fill and satin stitches. Photo: Darylsteve, CC BY-SA 4.0, via Wikimedia Commons
Machine chain-stitch embroidery on a voile curtain. Photo: PKM, Public domain, via Wikimedia Commons
Five-minute diagnosis. Where to start when the machine stops or sews badly.
Upper thread path. Every guide from the cone to the needle eye — the fix for most breaks and nests.
Why birdnests happen. What a nest is, the usual causes in order, and how to clear one safely.
The I-test for tension. Read the back of a satin column to balance top and bobbin tension.
Bobbin drop test. Set bobbin tension before you touch the top tension.
Needle orientation. Long groove to the front, scarf to the hook, pushed fully up.
Hook timing. What correct hook-to-needle timing and clearance look like.
Presser foot height. Too high causes flagging and loops; too low drags and breaks thread.
Hooping layers. Firm, flat and square — the root of most puckering and registration faults.
Cleaning and oiling points. Daily and weekly care points on a multi-needle head.

Maintenance schedule

IntervalTaskNotes
Every bobbin changeBrush lint from the bobbin case and hook areaCompressed air pushes lint deeper; use a brush or a small vacuum
Daily (commercial)One drop of oil on the rotary hook raceOnly if your manual specifies oil; most home machines need none
DailyCheck needles for burrs and bendsChange needles every 8–10 hours of sewing, or after any strike
WeeklyRemove the needle plate and clean under it and around the trimmerCheck the moving knife for nicks
WeeklyOil needle bars and other points shown on the oiling chartWipe off excess so it doesn't drip on garments
MonthlyClean tension discs and thread-break sensors; check bobbin tensionFloss the discs with a piece of thread
YearlyProfessional service: timing, belts, rails and grease pointsMore often in high-volume shops

Settings that cause stitch problems

Many "machine" faults are settings or design faults. Check these before you call for service:

  • Speed: dense fills, small text, caps and metallic threads need lower speeds. Most machines let you set a maximum speed per design or per needle.
  • Jump-to-trim: many commercial machines trim after a set number of consecutive jumps. If the design was digitized for a different rule, you get too many or too few trims.
  • Thread-break sensitivity: too sensitive gives false stops; too lax lets the machine sew without top thread for many stitches.
  • Frame or hoop selection: the wrong frame lets the needle hit the hoop.
  • Presser foot height: set it for the thickest area of the garment; reset it for the next job.
  • Design density and underlay: a design digitized too dense will break thread, shred and pucker on any machine.

Official manuals, FAQs and support

Straight from each manufacturer. Links open the maker's own site.

Brand-by-brand troubleshooting pageserror codes, model families and links to each manufacturer's own manuals and support pageseasydigitizer.com EasyDigitizer help centredigitizing questions and fixes for design-related sew-out problemseasydigitizer.com

Frequently asked questions

Why does my embroidery thread keep breaking?

The most common reasons are a missed guide or tension disc in the thread path, a worn or wrong-size needle, and tension that is too tight. Rethread completely, fit a new 75/11 needle facing the right way, and slow down. If breaks continue on every needle, check for burrs on the hook and needle plate.

What causes a birdnest under the fabric?

A birdnest means the upper thread has no tension, so the hook keeps pulling slack under the fabric. It is usually caused by thread that has slipped out of the tension discs or missed the take-up lever, or by fabric bouncing in a loose hoop.

How do I know if my tension is right?

Sew a satin column about 6 mm wide and look at the back. About one third of the width should be bobbin thread in the middle, with top thread on either side. Set the bobbin first, then adjust each upper tension to match.

How often should I change embroidery needles?

Every 8–10 hours of sewing for commercial machines, at the start of each big project on home machines, and immediately after any needle strike. A needle can look fine and still have a burr that shreds thread.

Is it a machine problem or a design problem?

If the problem happens with every design, it is probably the machine, the thread or the hooping. If it only happens with one design, or always at the same spot in a design, it is probably the digitizing: density, underlay, pull compensation or stitch order.

Machine's fine — but the design still sews badly?

Density, underlay, pull compensation and stitch order cause more "machine problems" than machines do. EasyDigitizer builds production-ready files for every brand above in your browser.

Start digitizing — free

Other machines: Baby Lock · BAI · Barudan · Bernina · Brother · Happy · Husqvarna Viking · Janome · Melco · PFAFF · Ricoma · SWF · Tajima · ZSK
